Product overview

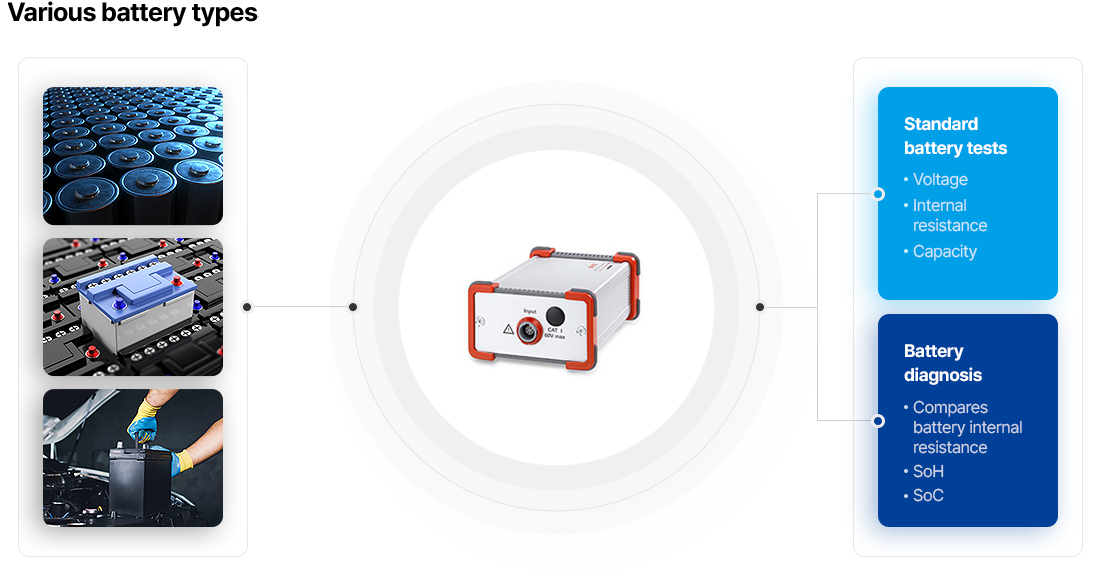

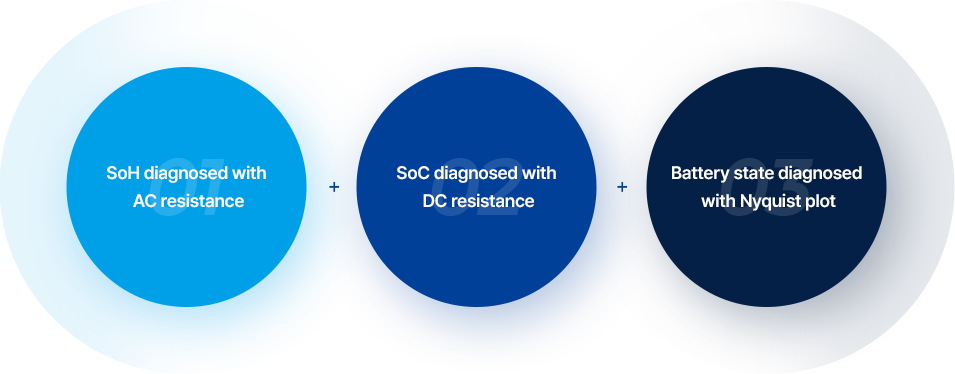

Developed by BRS in Germany, this battery diagnosis device quickly diagnoses and analyzes battery state, in other words SoC (State of Charge) and SoH (State of Health), using the characteristic of battery impedance that changes based on frequency.
Our product supports data log functions in ASCII and CSV file formats for further analysis of data.

HanilProTech provides technical support for 'Impedance Spectrum Battery Diagnostic Device' and customized products to meet user requirements.

Product type and specification

Type	BTC1B	MBT-S / -L	MBT-X5	BIM2B	BIM-HV-B
Application	R&D, Qualification of cells	Production, BoL-Test, EoL-Test	Production, BoL-Test, EoL-Test	R&D, QA and diagnosis for cells and modules	R&D, QA and diagnosis for high voltage systems
Special features	Complete test of cylindrical cells with just one instrument	3 parameters in just 0.4sec AC-IR and DC-IR	5channel cell measurement system	Easy-to-use universal tool for impedance testing	Impedance tester for up to 900V
Measurement speed	1sec per frequency 12sec….84sec per scan	0.4sec	0.1sec….1.3sec per channel	1sec per frequency 12sec….84sec per scan	1sec…6sec per frequency 12sec…22sec per scan
Voltage ranges	5V, 60V	5V	5V	5V, 60V	100V, 900V
Impedance types	Resistance, reactance Nyquist plot Model parameters	Resistance	Resistance	Resistance, reactance Nyquist plot Model parameters	Resistance, reactance Nyquist plot Model parameters
Impedance ranges	1mΩ…1Ω in 7 ranges	(MBT-S)1 / 3 / 10 mΩ (MBT-L)10 / 30 / 100 mΩ	10 / 30 / 100 / 300mΩ	1mΩ…1Ω in 7 ranges	10 / 100 / 1000mΩ
Frequency range	0.1Hz…1000Hz	10Hz, 1000Hz	1Hz, 10Hz, 100Hz, 1kHz	0.1Hz…1000Hz	1Hz…1000Hz
Additional measurements	Temperature, Capacity	Temperature	-	Temperature	-
Communication interface	USB	RS232	RS232 and USB	USB or RS232	USB
Detailed page	More info	More info	More info	More info	More info
