Products

제품

  • 제품
  • 실내 공기질 제어시스템

주요 기능

  • POINT 01

    원하는 외기 풍량 설정
    및 제어

  • POINT 02

    유입되는 외기 풍량 측정 및
    모니터링

  • POINT 03

    다양한 통신 방식의 원격제어 기능

    1.RS485 통신, BACnet MS / TP & Modbus RTU 프로토콜 지원
    2.DDC (Direct Digital Control)

제품 이미지

BASCON_IAQ

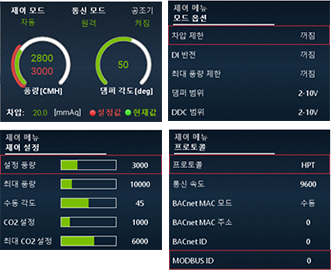

LCD UI

제품 사양

구분 사양
Damper Control Voltage (output) 24 VDC
Damper Control Type PI Control
Communication Protocol BACnet MS/TP, Modbus RTU, HPT Protocol (RS485 2Wire)
Baudrate 9600, 19200, 38400, 57600, 115200 bps
Display TFT LCD 3.2” (320 x 240)
Input - Differential Pressure Sensor (0~50 mmAq)
- Air Flow Rate
- Damper Angle
- CO2 외
Output Damper Control (Hardwire) 4 lines
Supply Voltage 220 VAC
Dimension (W x H x D) 185 x 280 x 100 mm
